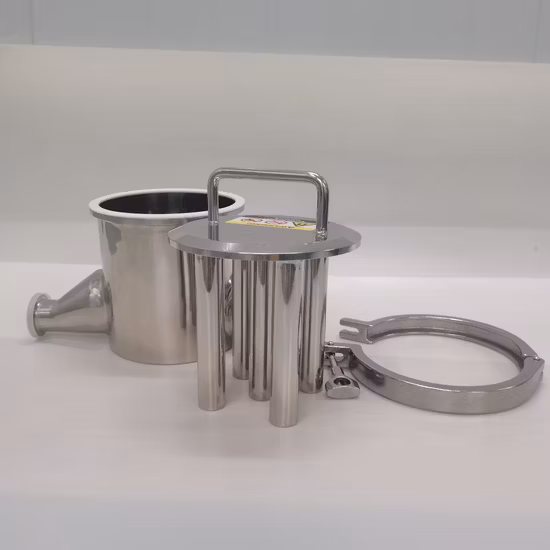

Customised Food Industry Stainless Steel Fuel Magnet Filter Strong Separation Use Liquid Magnetic Trap Filter

Customised Food Industry Stainless Steel Fuel Magnet Filter Strong Separation Use Liquid Magnetic Trap Filter

Magnetic liquid traps consist of a group of magnetic grates and stainless steel housing outside. An inlet and outlet mak
SHARE

Description

Basic Info.
Model NO. Easy Cleaning
Connection Type Clamp
Surface Treatment Polishing and Sand Blasting
Material S304 or S316 Stainless Steel Neodymium Magnetet
Surface Gauss 8000-13000gauss
Transport Package Neutral Packing for Export
Specification Dia100mm-Dia300mm
Trademark HAWELL
Origin China
HS Code 8505111000
Production Capacity 100000PCS/Year
Product Description

Customised Food Industry Stainless Steel Fuel Magnet Filter Strong Separation Use Liquid Magnetic Trap Filter

Magnetic liquid traps consist of a group of magnetic grates and stainless steel housing outside. An inlet and outlet makes it possible to connect with existing processing line by various connection types. Magnetic liquid traps are designed for extracting the ferrous material from the liquid, semi-liquid and air conveying powder in order to purify the material in the production process. Strong magnetic tubes inside the housing filtrates the flow and picks out the unwanted ferrous metal. The unit is simply mounted to the existing pipeline via flanged or threaded ends. Easy access is also possible using the quick release clamp.

Magnetic Liquid Traps are designed to remove ferrous tramp metal contamination from liquid processing and conveying lines. To provide continuous and dependable magnetic protection in non-fibrous fluids, the design of this trap forces liquids through a tightly spaced grid of magnetic cartridges, ensuring close contact between the product and the magnetic field. They provide dependable protection against tramp iron contamination. These traps come equipped with powerful high-energy and high-temperature neodymium magnets to capture challenging types of debris, such as work-hardened 300 series stainless steel fragments. Metal-detectable gaskets and grommets are standard features in housing of magnetic liquid traps. Cartridge style liquid traps feature a quick release clamp.


Optional features:

The shell material: SS304, SS316;The magnetic strength grade: 8000Gauss,10000Gauss, 12000Gauss,13000Gauss;Working temperature grade <: 80ºC, 100ºC, 120ºC, 150ºC, 180ºC, 200ºC;Various designs available: easy clean type, pipe in line type, jacket design;Compress resistance: 5 kilograms (0.5Mpa ) with quick release clamp, and 10 kilograms (1.0Mpa) with flange;Also takes customers' designs. Easy Cleaning Magnetic Liquid Trap:Easy Cleaning Manetic Liquid Type:

magnetic liquid traps use powerful, high-energy and high-temperature rated neodymium magnets to effectively remove ferrous tramp from your liquid processing and conveying lines.magnetic liquid traps are designed to handle the wide variety of liquids that food processors may find themselves flowing throughout their facilities. Whether you are flowing milk, acidic orange juice, heavy oils and syrups, or chunky vegetable soup, we have the perfect magnetic liquid trap to suit your needs.Quick release clamp type :1.Customized products:Fluid iron remover with insulation jacket (mainly used in chocolate processing production line).
2.Customized Products :
The clamp type fluid iron remover meets the requirements of CIP production line. please see below drawings:


SpecificationSize (mm)No. of rods
DdΦHL
FT150/38CC-C152.438.150.51503207
FT150/50CC-C152.450.8641503207

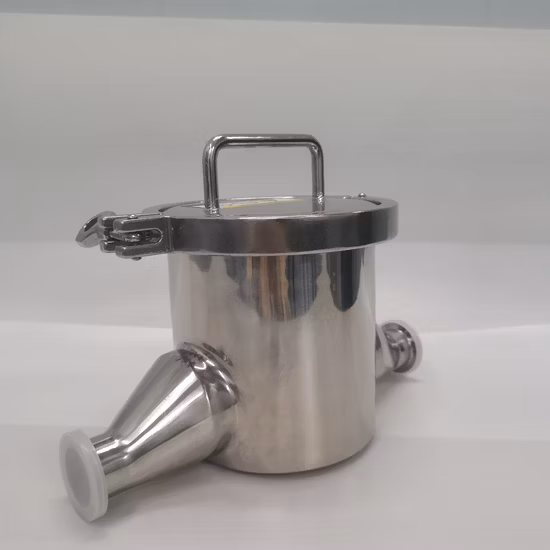

Customised Food Industry Stainless Steel Fuel Magnet Filter Strong Separation Use Liquid Magnetic Trap Filter

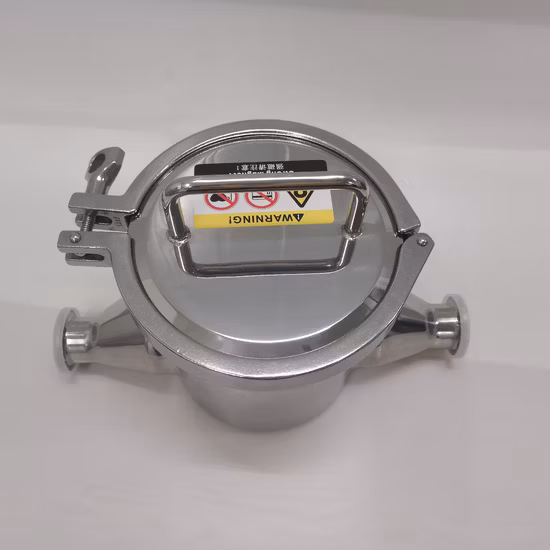

Customised Food Industry Stainless Steel Fuel Magnet Filter Strong Separation Use Liquid Magnetic Trap Filter

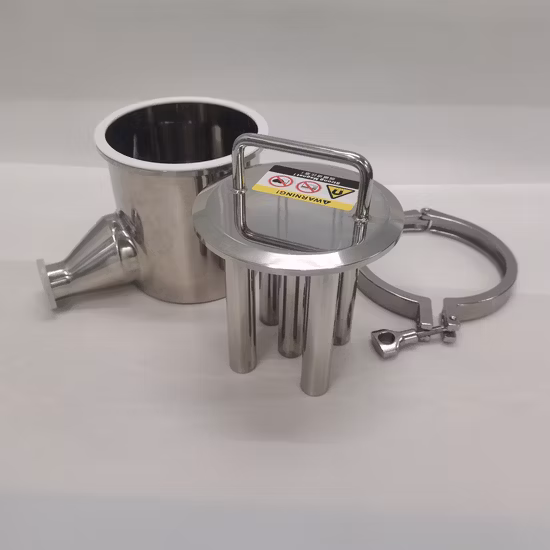

Customised Food Industry Stainless Steel Fuel Magnet Filter Strong Separation Use Liquid Magnetic Trap Filter
