Overview The latest KOLONWASH automatic car wash technology has improved the standard for non-contact car wash equipment


Basic Info.
Model NO. 360PLUS
Function Micro High Pressure Water Cleaning
Material Metal
Condition New
Main Market Southern Europe
Transport Package 10.5 Cubic
Trademark CAR help
Origin Shanghai
HS Code 8424899990
Production Capacity 1000 Set/Year
Product Description
The latest KOLONWASH automatic car wash technology has improved the standard for non-contact car wash equipment. Focusing on increasing revenue and improving total cost of ownership, the car wash system delivers the industry's best return on investment. Smart 360 plusTM technology enables the car wash system to respond to dynamics in the car wash and "think about itself", increasing uptime and optimizing the car wash process.

Significantly increased cleaning speeds increase vehicle throughput, shorten production lines and satisfy your customers. Simplified machine design and lower energy and utility usage reduce operating costs, making the car wash business more profitable.

Main feature
1.Intelligent unmanned system, self-service card payment system.
2. Smart 360 plus technology.
3.Intelligent chemical mixing system.
4.Innovative suspension system with no resistance rails.
5.Unique embedded quick drying system.
6.Digital voice security alarm system.
7.The self-test system is faulty.
8.One-button antifreeze system

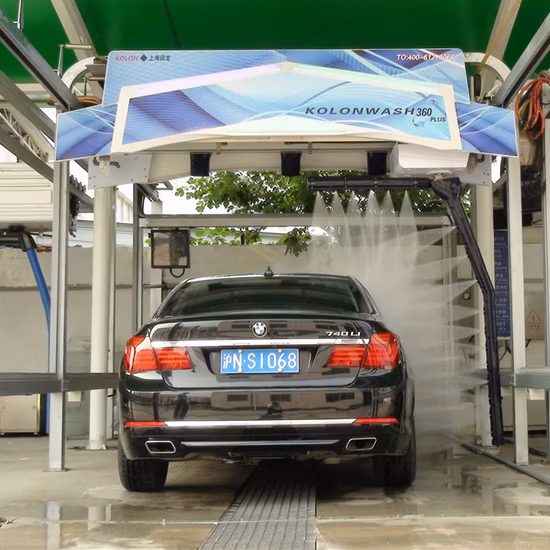

1. High pressure pre-washing of the chassis and wheels.
Equipped with a unique chassis and fan hub flushing function, 80bar high pressure water can effectively remove dirt from the chassis, the side of the body and the wheels.

Touchless Fully Automatic Car Washing Robot with Air Drying System High Pressure

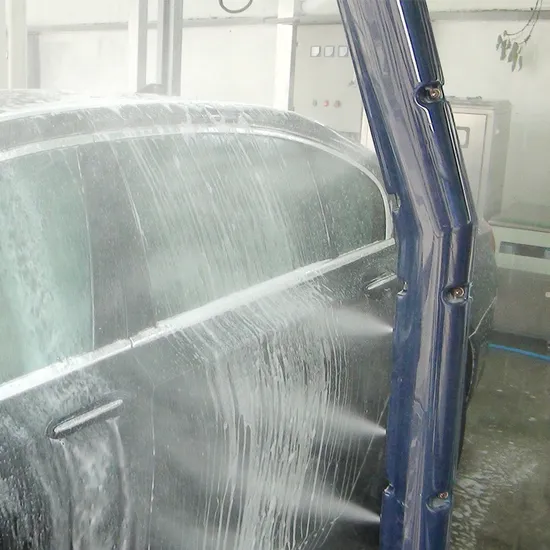

2. Intelligent 360 plus-degree rotating arm, using high-precision batching technology to spray various washing chemicals.
100% accurate measurement with adjustable ratio. Car washing with a high-precision chemical mixing system requires only 20 to 50 ml of pre-soaking, saving material and cost.

Touchless Fully Automatic Car Washing Robot with Air Drying System High Pressure

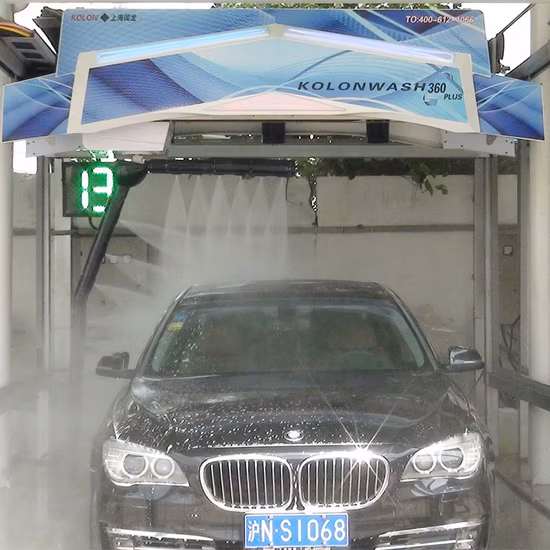

3.Intelligent 360 plus-degree swivel arm, flush the body 360 plus° with high-pressure water.
360 plus° rotation in 28 seconds, water saving 50%, power saving 60%, automatic detection of the length and width of the vehicle, high pressure water up to 80bar can easily remove dirt.

Touchless Fully Automatic Car Washing Robot with Air Drying System High Pressure

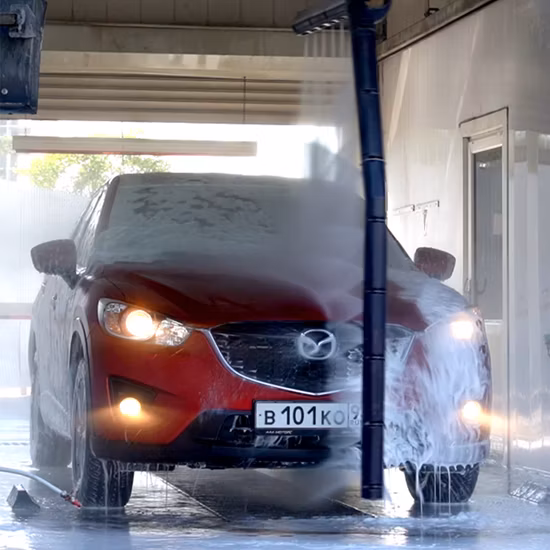

4. Magic color polishing shampoo
The thick foam allows the cleaning and maintenance components to come into full contact with dirt, which increases the efficiency of decontamination and makes the paint color moister and brighter.Ion cleaners have a unique soft broad-spectrum activity that emulsifies daily to effectively clean the dirt on the body and is non-corrosive to automotive paints, wheels, tires, and window glass.

Touchless Fully Automatic Car Washing Robot with Air Drying System High Pressure

5. Colorful bubbles.
The bright and colorful system will help you to successfully grow your car wash business. Under the colorful LED lights, this innovative system can pour out silky smooth fluid and brighten the body with a unique and interesting customer experience. Customers will love shiny cars and you can Enjoy the growth of income.

Touchless Fully Automatic Car Washing Robot with Air Drying System High Pressure

6. Soft water and crystalline wax coating
The soft water can make the shampoo and wax in the magic crystal paint completely adhere to the surface of the car body, forming a multi-layered interaction strength protective film, making the car paint more radiant and with long-lasting paint protection.The crystal coating of the wax can be formed in the surface layer polymer of the coating, and the soft water agent is melted into a hard protective film, which has excellent protection against automobile paint, and has the functions of preventing acid rain, preventing pollution and preventing ultraviolet corrosion.

7. Unique embedded quick drying system.
KOLONWASH 360 plus is equipped with four 5.5kw motors in the car washer. The air flow is controlled by four cylindrical outlets. The first task is to blow off a bunch of winds, reduce the wind resistance of the subsequent wind, and make the car surface dry. KOLONWASH 360 plus optimizes wind speed characteristics. Other traditional types of fans increase wind speed, but when the car body is reached, the wind has been minimized. In fact, high-speed airflow is the best drying solution.

8.Using the German PINFL brand high-pressure piston pump and the German Siemens brand 18.5KW motor, the flushing pressure can reach 80Bar-150Bar.

9.Integrated intelligent liquid automatic proportioning system
The system is equivalent to a powerful chemical laboratory, equipped with a variety of liquid packages, accurate metering, spraying a car with only 20-50ml car wash liquid, precise control of each cost. Computer program control, no manual operation, fully automatic adjustment of the scale. Through the steps of mixing, atomization and the like, the micro-granules are formed, and the surface of the vehicle body is covered by spraying, and the stains are more thoroughly contacted, and the gap of the body body can be uniformly penetrated.

Humanized design
*LED with voice prompt
*Automatic cleaning of the rearview mirror
*Error log and data report
*Automatic standby service
*Multi-control mode (via touch screen, magnetic card, payment station button, remote control operation washing system)
KOLON360 plus Install 3D map

Machine size3500mm* 1200mm* 900mm
Pump size1250 mm * 800 mm * 600 mm
Chemical mixing system size1490mm* 500mm* 1000mm
Track length7500 mm
Shipment weight/volume2.6 tons, 11 CBM
Installation size (ceiling installation length)8800 mm ~ 7500 mm
Installation size (floor installation length)≥7600 mm
Transversal motorpower0.75Kwdigital drive motor
Rotarymotorpower0.75Kwdigital drive motor
DriveSystemPromise frequency digital drive
DetectionsystemSmartthree-dimensional monitoring system
Speed360 plusWASH28seconds,energysaving60%
Polish shampoo consumption10ml-40ml
WaterconsumptionStandardWASH94L/car, FineWASH150L/car
ElectricityconsumptionStandardWASH0.52 kW·h/car, FineWASH0.99 kW·h/car

1.What is the size of the Washing workshop required to install KOLONWASH (length × width × height)?
KOLON360 plus:7500×3800×3350mm

2. How long does it take to completely clean KOLON 360 plus?
It takes about 28 seconds for KOLON 360 plus to run in a circle. It takes about 5 minutes to completely clean with high-pressure water spray, wax, foam and air drying.

3. What is the effect of air drying?
Designed with the principle of air fluid mechanics, the drying of long-distance high-pressure cylinders can be achieved, which can achieve 90% drying effect. The safety stability is much better than the profile air drying in the brushing machine.

4. How much does it cost to wash a car?
For example, in our city of Shanghai, the water and electricity cost of a car is about 1.5 yuan, and the cost of chemicals is about 1 yuan, a total of 2.5 yuan equals 0.45 dollars.

5. What is the difference between KOLON 350 and 360 plus and KL1?
KOLON 350 is the concept for fast car wash. The standard 350 machine has no polishing shampoo for 360 plus, water wax and air drying function, only high pressure water and pre-soaking chemicals. At the same time, the size of the machine is 360 plus, KOLON360 plus can be washed. Some large size cars, while the 350 may not wash. KL1 and KOLON350 have similar functions, but the structure is different and the price is more competitive, which can reduce operating costs for customers.

6. Which size car can KOLONWASH apply for (length × width × height)?
KOLON360 plus maximum car wash size: 5900 × 2900 × 2050mm
KOLON350 maximum car wash size: 5600 × 2600 × 2050mm
KL1 maximum car wash size: 5500 × 2600 × 2000mm

7. What power is needed to run KOLONWASH?
KOLONWASH car washing machine requires three-phase industrial power supply. In China, the standard is 380V / 50Hz. If customers need different voltage or frequency, we must customize the Siemens motor and replace the fan, low voltage cable, control unit, etc.

8. How to install and service KOLONWASH?
*If you have an exclusive distributor in your area, you will need to purchase the product from the distributor, who will support your installation, training and after-sales service.
*If you can't find a distributor in your area, we can send a technician to support your installation and training, but the travel expenses should be borne by the customer, including visa fees, airfare, hotel fees with restaurants, and customer needs. Pay technicians salary of USD100 / day.
*Customers can install the machine themselves and we will send a detailed installation and maintenance manual with the machine.

9. How to become a distributor?
KOLONWASH's marketing strategy is to establish distributors in each country. (Some big countries will be established by region)
*For regular publishers who do not have exclusive rights, we have no special conditions.
*If you want to apply for exclusive distribution rights in your country, the first step is to purchase a demonstration machine to show to customers there, and we need to reach an agreement with the minimum order quantity each year.

10. What do I need to prepare before installing the machine?
* Three-phase industrial power supply, 25Kw.
* Water supply with water tank. (2000 liters)
* An air compressor with an air volume greater than 0.67 m3/min provides a stable air pressure greater than 0.8 MPa.
* Floor cement thickness needs to be greater than 20cm. If it is not enough, it is necessary to make six concrete columns to install the support frame. The floor level error is less than 3cm.
* 2 scaffolding
* 1 electric hammer, configured as 10, 14, 16 each.
*1 welding machine
* Polishing machine 1
*Infrared level 1
* Thick linen is 10 meters.

11. What is the warranty for KOLONWASH?
We offer a 3-year extended warranty on the complete machine (including all spare parts). During the warranty period, if any part fails, we will compensate the new parts for free, but the warranty does not include the courier fee. Typically, we will ask the customer to keep some spare parts for machine maintenance, and the compensation spare parts will be sent together at the next shipment, or sent in a cheaper way, but not DHL.
At the same time, the warranty is void under any of the following conditions:
* Failure to follow directions or under abnormal conditions may result in personal injury or operating the machine.
* Damage caused by force majeure, such as war, flood, earthquake, lightning strike, abnormal voltage.

12. What is the transport volume of KOLONWASH?
*KOLON360 plus: solid wood composite box for mainframe: 3660×1410×1255mm, solid wood composite box for pump system: 1350×890×640mm, solid wood composite box for mixing system: 1490 ×500×1000mm, guide rail: 2 (7.5 m), Frame: 13 with a total transport weight of approximately 2600 kgs and a total transport capacity of approximately 11 cubic meters.
*KOLON350: plywood box for mainframe: 3160×1265×1255mm, plywood box for pump system: 1330×775×590mm, guide rail: 2 (7.0 m), frame: 13 pieces, total transportation weight about 1500kgs, total transportation volume 9 cubic meters.
Since the 7.5 m rail is longer than the 20' Ft container, our machines need to be transported in 40' Ft containers.

13. How to transport and how much?
We will ship the container to the destination port by ship. The transportation condition can be EXW, FOB or CIF. The average transportation cost of one machine is about USD500~1000, depending on the distance from the destination port. (Send the port to Shanghai)

14. What is the lead time of KOLONWASH?
If the customer requests the same as the Chinese standard three-phase industrial voltage 380V / 50Hz, we can provide fast delivery within 7~10 days. If it is different from the Chinese standard, the delivery schedule will be extended by 30 days.

15. What is the coordination system code for the car wash system?
Customs code: 8424899990

KOLONWASH Service and Maintenance
1. The maintenance and maintenance of the KOLONWASH system should be carried out by professional technicians. The machine should be cut off during maintenance. The factory-set management code is 8888, which has the ability to modify parameters, view the number of car washes, and change passwords. The default password of the cleaning system is 0, which can be changed to other passwords such as 12345. Then the operator needs to enter the management center first and enter the password 12345 before starting the operation.

2. Place the main control box and touch screen in a dry environment. Do not touch these devices with wet hands. Keep the chemical mixing box and the water pump box in contact in a dry environment. Before turning on the power, make sure that the main control box voltage display is stable and consistent.

3. Regularly maintain and maintain the cleaning system, periodically clean the surface of the machine, remove dirt from the sensor, and remove water from the drive control box. Wash the water tank when it gets dirty, especially the inlet filter of the water pipe. It is strictly forbidden to start flushing when the water tank is short of water. First, use the chassis to discharge air. Do not use the "L" arm flushing device to discharge air.

4. During the idle period of the car wash equipment, the waste water in the pipeline and the water tank must close the inlet valve of the chemical mixing system when the temperature is below zero, then shut down the machine, use the one-button drainage function to discharge the liquid in the machine pipe, and then open the discharge. Valve to prevent condensate from draining. Do not start the machine after freezing, otherwise the pump and motor will be damaged.

5. Add cleaning agent in time. If the air enters the hose, the cleaning agent will not be sprayed to prevent impurities from falling into the cleaning liquid tank and the water tank. Otherwise, the chemical mixing box may be stuck.

6. The air compressor needs to install the oil-water separator. The water is discharged once every 15 days in the compressor. The air supply to the cleaning system should not contain a lot of water and oil. Otherwise, the air will be insufficient during the chemical spraying process. Use heavy alkaline water (pH > 8) or high salt water.

7. Check the motor belt of the pump and pump every 30 days. If the belt fluctuates too much, tighten the belt to ensure the parallelism when the belt is tensioned. Clean the water pump filter regularly. Change the oil in the pump regularly (every 5000 units) or when the oil is dirty. More than half of the oil is not satisfied, Taiwan's Wuli WH-10120 pump uses 30, 40 or 68 oil (2.36L), Germany Pinfl pump uses 220 shell gear oil (3.3 L)

8. Check the timing belt every 30 days. If the timing belt is found to be biased and loose, tighten it immediately, otherwise the machine will jump due to the grinding sound.

9. Check the terminals in the electrical cabinet every 30 days, especially the terminals of the water pump and fan power cable, and the terminals in the drive control box (because it moves around every day). If it is loose, tighten it. This will ensure the stable operation of the power system.

10. Check the frame screws and rail fixing screws every 90 days and check the handwheel every six months.
