Splendid Pet Bottling High Pressure Air Compressor System Made in China

Basic Info.

Product Description

1. PRODUCT DESCRIPTION

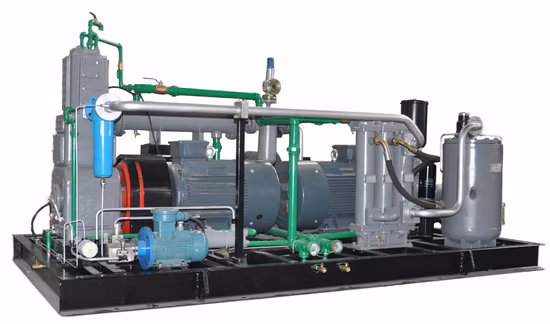

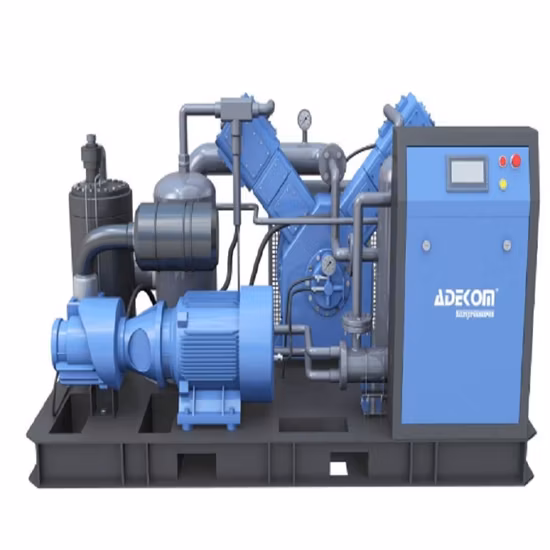

   The PET bottling application big capacity high pressure compressor package consists of first stage screw compressor followed by second stage high pressure oil free reciprocating booster compressor. Rated capacity: 20.0Nm3/min and discharge pressure: 3.0MPa. The first stage screw compressor and second stage high pressure booster are fitted with two electric motors separately. All coolers in the system of this compressor unit are water-cooled. Complete compressor package is installed on the same baseplate for compact design, small footprint, and light weight (refer to the above photo as reference).
2. Reference standards and documents Main standards adopted in designing, manufacturing, inspecting, assembling and testing of the compressor unit:
   GB/T3853 Positive displacement compressor acceptance test
   GB/T 4980 Positive displacement compressor noise measurement
   GB/T 13279 Stationary piston compressor for general use
   GB/T 7777 Piston compressor vibration measurement and evaluation
   GB/T 15487 Positive displacement compressor measurement methods
   JB 8524 Positive displacement compressor safety requirements
   GB755 Rotating electrical machines - rating and performance
   GB/T8163 Seamless steel pipes for liquid service
   GB/T14976 Seamless stainless steel pipes for fluid transport
   JB/6441 Safety valve for compressor use
   JB/T 6431 Positive displacement compressor with grey iron castings - technical condition
   JB/T 6908 Positive displacement compressor with forging - technical condition
   GB151 Steel Shell and Tubular Heat Exchangers
   JB4730 Nondestructive testing of pressure vessels
   Safety technical inspection and monitoring regulations of pressure vessels
   GB150 Steel made pressure vessels
3. Technical requirements IN GENERAL

   3.1 Basic technical parameters
   3.1.1 Discharge pressure 3.0 MPa,
   3.1.2 Capacity under standard condition 20.00 Nm3/min,
   3.1.3 Discharge air temperature ≤45oC

   3.2 Reference conditions
   3.2.1 Ambient temperature -5°C ~ +40°C, continuous running,
   3.2.2 Relative humidity: 95% (standard atmospheric pressure, ambient temperature at 20oC)

   3.3 Documents and drawings
   3.3.1 Quality certificates, O&M manuals, recommended spare parts list
4. Technical data sheet

   Model Items	KSP110/75-30
   Compressor type	High pressure air compressor (1st stage: screw compressor + 2nd stage: oil free piston booster)
   Capacity	20.00 m3/min
   Compression media	Air
   Inlet pressure	Atmospheric pressure
   Rated working pressure	3.0 MPa
   Stage of compressor	2
   Inlet temperature (package)	≤40 oC
   Discharge temperature (package)	≤45 oC
   Operating temperature	-5°C ~ +40 °C
   Relative humidity	95% (standard atmospheric pressure, ambient temperature at 20 oC)
   Power source (both stages)	Driven by electric motors
   1st stage screw compressor shaft power	96 kW
   1st stage screw compressor installed motor power rating	110kW, SF1.20
   1st stage screw compressor motor speed	2975 r/min
   2nd stage piston booster shaft power	61.5 kW
   2nd stage piston booster installed motor power rating	90kW, SF1.0
   2nd stage piston booster motor speed	730 r/min
   Operation and display mode	Touch screen PLC display
   1st stage screw compressor starting method	Y-△ starting

   2nd stage piston booster starting method	Auto-induction voltage-reduced starting
   Cooling method	Water-cooled
   Cooling water flow	> 12T /hour
   Dimensions	4500 ×2100 × 1850 mm
   Weight	≤ 5550 kg
